Choosing the Right Benchtop NMR Spectrometer: A Practical Buyer's Guide

This guide is intended to help navigate the key decisions involved in purchasing a benchtop NMR spectrometer. It is written for anyone involved in the evaluation or purchase of a benchtop NMR system. Whether you are considering your first benchtop NMR instrument or planning an upgrade, this guide will help you:

• Understand the differences between high-field and benchtop NMR spectrometers
• Compare key technical specifications, such as field strength, nuclei, lock type, and gradients
• Evaluate various options, including flow NMR, variable temperature, and autosampler capability
• Calculate the cost of ownership beyond the initial capital expenditure

To highlight what modern benchtop NMR spectrometers can offer, the guide draws on examples from the X-Pulse series from Oxford Instruments. Finally, it presents a comparison of the X-Pulse 60 and X-Pulse 90 benchtop NMR spectrometers along with a checklist of top questions to ask before purchase.

NMR Spectroscopy and Types of NMR Spectrometers

Nuclear magnetic resonance (NMR) spectroscopy is a powerful analytical technique with multiple applications across the chemical, pharmaceutical, materials, and food and drink industries. The broad utility of NMR spectroscopy is a result of its dual functionality: it can be used for both characterisation (identifying specific molecular structures) and quantification (determining the amount of a specific compound in a sample); this dual functionality makes it enormously useful in quality control (QC)/quality assurance (QA) applications, research, process monitoring, and education.

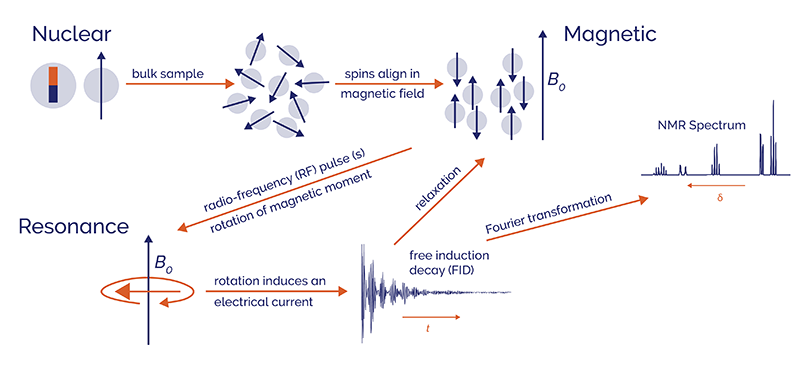

Fig. 1 — Schematic overview of how NMR spectroscopy works: nuclear spins align in a magnetic field, are perturbed by radiofrequency pulses, and the resulting free induction decay (FID) is transformed into an NMR spectrum.

NMR spectroscopy works by placing a sample in a strong magnetic field. Nuclei that possess a magnetic moment (such as the hydrogen nucleus, ¹H, or carbon nucleus, ¹³C) act like spinning tops in the magnetic field, precessing around the axis of the field at a particular frequency (their Larmor frequency). Short pulses of radiofrequency (RF) energy are applied to the sample, and these pulses tip the orientation of the precessing spins away from their alignment with the magnetic field. When the nuclei return ('relax') to their original state, they emit an RF signal that is detected by the NMR spectrometer (the free induction decay, FID) and transformed into an NMR spectrum. The exact signals that are detected from each nucleus depend on its chemical environment, meaning that atoms in different molecular surroundings (such as connected to different types or numbers of atoms) produce distinct signals. By analysing the position, intensity, and splitting patterns of these signals, the molecular structure can be determined and the concentration of compounds within a sample can be measured.

NMR spectrometers are grouped into two main categories: high-field and benchtop systems. While both categories share the same basic operating principles, their design – especially regarding portability and affordability – varies significantly.

High-Field NMR Spectrometers

High-field NMR spectrometers are the most established and widely recognised form of NMR instrumentation today. These systems, which are typically floor-standing, use magnetic field strengths of approximately 5 Tesla (T) and above – corresponding to operating frequencies of 200 MHz¹ and above for ¹H NMR. Modern research instruments commonly reach 9–14 T (400–600 MHz), with the highest commercially available magnet being 28.2 T (1.2 GHz). Superconducting magnets are used to generate these high magnetic fields, and these powerful magnets require continuous cooling with liquid helium and liquid nitrogen.

¹ Operating frequency refers to the Larmor frequency of a ¹H nucleus in the applied magnetic field (i.e. the frequency at which a ¹H nucleus would precess in the magnetic field). It is directly proportional to magnetic field strength, and is commonly used as a proxy measure for magnetic field strength.

Fig. 2 — A high-field superconducting NMR spectrometer, requiring cryogenic cooling and dedicated infrastructure.

The main advantage of high-field NMR instruments is their performance. High magnetic fields give increased signal dispersion (the ability to differentiate closely spaced signals in a spectrum) and increased sensitivity (signal-to-noise ratio). High-field NMR instruments, therefore, allow users to characterise complex molecular structures and detect low-concentration compounds. As a result, high-field NMR systems are critical in cutting-edge research applications. However, these benefits come with significant trade-offs.

Superconducting magnets require ultra-cold (cryogenic) conditions. As a result, high-field NMR instruments are very large. Dedicated infrastructure is needed, including specialised rooms, cryogen handling facilities, and trained staff to manage their operation. Capital expenditure is also high and running costs – especially the costs associated with cryogens – are substantial. Access to high-field NMR systems is therefore often centralised, with instruments housed in shared facilities rather than located directly within individual laboratories. For many routine tasks, such as reaction monitoring, purity checks, or QC measurements, this setup can introduce delays, logistical challenges, and unnecessary expense. These limitations were the key driver behind the development of benchtop NMR systems.

Benchtop NMR Spectrometers

Benchtop NMR spectrometers, sometimes referred to as low-field NMR spectrometers, were developed to address the logistical and cost downsides of high-field instruments. Benchtop NMR instruments operate at lower magnetic field strengths – typically in the 1–2.1 T range (43–90 MHz operating frequency for ¹H NMR). Because of their lower field strengths, these systems use permanent magnets rather than superconducting magnets. This fundamental change enables a significant reduction in size, cost, and operating complexity.

Advances in permanent magnet design throughout the 1990s laid the groundwork for benchtop NMR. The first commercially available benchtop NMR spectrometers reached the market in the early 2010s. Improvements in electronics, magnets and signal processing have significantly expanded the scope of applications that can be addressed, and modern benchtop instruments are now able to perform complex experiments (including two-dimensional and gradient-enhanced methods) once reserved for high-field instruments. One of the most significant recent advances in benchtop NMR has been the introduction of broadband capability, allowing users to observe multiple NMR-active nuclei on a single instrument.

In return for lower field strength, benchtop systems are compact, portable, cryogen-free, simpler to operate, and less expensive. Their small footprint enables them to be located directly in a laboratory, inside a fume hood, or on a trolley that can be moved between labs. Benchtop NMR systems have a lower barrier to entry for non-specialist users, with software interfaces designed for ease of use. Once a niche tool, benchtop NMR is now a powerful analytical platform that is redefining the way NMR spectroscopy is used.

Key Buying Considerations

Field Strength

Field strength is one of the most important parameters to understand when evaluating an NMR spectrometer. The cryogen-free permanent magnets of benchtop NMR instruments operate at lower magnetic field strengths than standard NMR instruments. Yet, the typical field strengths of benchtop instruments are sufficient for routine QC, education, and many research applications.

Field strength correlates with two key properties of an NMR spectrometer: sensitivity and signal dispersion.

• The sensitivity of an NMR instrument is approximately proportional to the magnetic field strength (B₀) raised to the power of 3/2. Thus, a 90 MHz instrument has approximately twice the sensitivity of a 60 MHz instrument – this translates to approximately four-fold fewer scans to reach the same signal-to-noise ratio,² significantly reducing acquisition time, and permitting analysis of more dilute samples.
• Signal dispersion is a measure of peak separation in an NMR spectrum. Higher signal dispersion means there are fewer overlapping peaks. Signal dispersion scales in proportion to B₀. Thus, a 90 MHz instrument has 1.5 times the signal dispersion of a 60 MHz instrument. While modern 90 MHz benchtop instruments have improved signal dispersion over earlier benchtop designs, a high-field (superconducting) instrument remains the gold standard for crowded spectra, such as those of complex natural products.

² Signal-to-noise ratio (SNR) is proportional to the square root of the number of scans. Therefore, a ~2× increase in sensitivity (as expected when increasing from 60 to 90 MHz) reduces the number of scans required to reach the same SNR by approximately 2² ≈ 4-fold.

When deciding whether the field strength of a benchtop NMR spectrometer is sufficient for your application, consider both sensitivity and signal dispersion. Oxford Instruments offers an Online Spectra Library featuring NMR spectra acquired on X-Pulse instruments, which can help inform your decision.

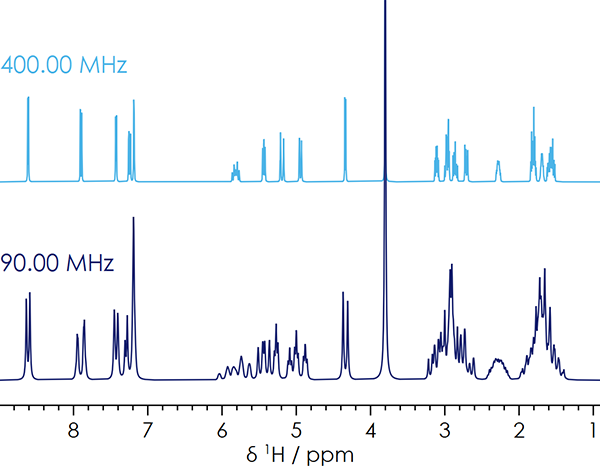

Fig. 3 — Comparison of ¹H NMR spectra of Quinine at two different frequencies, showing the increased signal dispersion at higher frequencies.

Nuclei

Only certain nuclei can be studied by NMR spectroscopy. These nuclei are said to be NMR active. The most commonly used NMR active nuclei are ¹H, ¹³C, ¹⁹F, and ³¹P; however, multiple other nuclei, including ¹¹B, ²³Na, ²⁷Al, ²⁹Si and ¹⁹⁵Pt, can be measured with some benchtop instruments. Benchtop instruments typically come with at least ¹H capability as standard (the X-Pulse series comes with both ¹H and ¹⁹F capability as standard). ¹H capability is sufficient for routine QC analysis of organic molecules. For detailed characterisation of organic molecules, ¹³C capability is required, and additional nuclei are required for the analysis of inorganic and organometallic compounds.

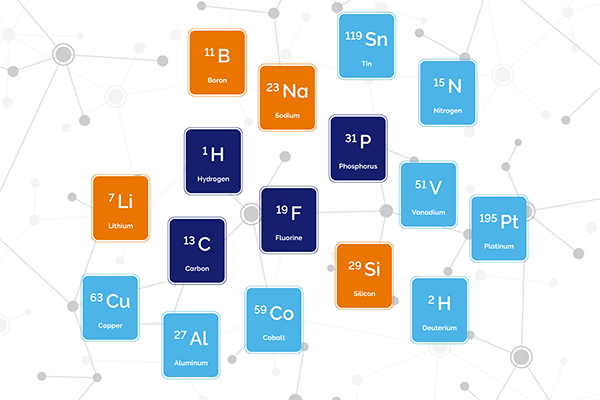

Fig. 4 — NMR-active nuclei accessible on broadband benchtop NMR instruments, including ¹H, ¹³C, ¹⁹F, ³¹P, ¹¹B, ²³Na, ²⁹Si, and others.

There are several options for adding further nuclei. In addition to the standard ¹H/¹⁹F probe, some instruments offer fixed nuclei probes (such as a ¹³C probe), dual-nuclei probes (which allow the user to switch between two nuclei), or broadband probes (which allow multiple nuclei). A broadband probe offers maximum flexibility, permitting the measurement of a range of non-¹H nuclei. For applications that require multi-nuclei flexibility or need to be future-proofed, such as an academic core facility, broadband capability is often preferred.

Internal versus external lock

In an NMR instrument, the lock stabilises the magnetic field during the acquisition of a spectrum. You can think of the lock as the 'image stabiliser', allowing for a clear spectrum to be obtained. NMR spectrometers traditionally use a deuterium (²H) signal as the lock. To measure an NMR spectrum, a source of deuterium must be present. Usually, this is done by preparing the NMR sample in a deuterated solvent, such as CDCl₃ or D₂O (referred to as an internal lock). However, some benchtop NMR instruments make use of a sealed deuterated reference sample (referred to as an external lock) that is contained within the instrument.

An external lock reduces the cost of sample preparation because regular non-deuterated solvents may be used to dissolve the sample. It also allows for the analysis of neat liquid samples (liquid samples without solvent), such as polymers and battery electrolytes. An external lock is especially useful in flow applications, where NMR spectra are obtained in their native solvents while the sample is flowing, permitting continuous monitoring. However, when an external lock is used with protio solvents, a trade off occurs: the non-deuterated solvents produce large ¹H NMR signals that can often interfere with the target NMR spectrum. Most benchtop NMR spectrometers that offer an external lock will also offer solvent suppression methods. These methods are essential for the elimination of undesired ¹H NMR signals from the solvent, allowing for clean ¹H NMR spectra to be obtained. When measuring nuclei other than ¹H, solvent signals are unlikely to be a concern.

Gradient performance and orientation

Pulsed-field gradients are spatially controlled variations in magnetic field strength that find several applications in modern NMR spectroscopy. Pulsed-field gradients enable faster acquisition of two-dimensional spectra (via so-called gradient-enhanced pulse sequences), are critical in many solvent suppression methods, and permit the measurement of diffusion constants. Some benchtop instruments, including the X-Pulse series, are equipped with pulsed-field gradients, enabling modern gradient-enhanced and solvent suppression methods to be run.

The measurement of diffusion constants relies on a stronger pulsed-field gradient along one axis (typically the z-axis, which runs parallel to B₀). This gradient is commonly referred to as a diffusion gradient (see the Pulse Sequences section for details on diffusion methods). When combining diffusion NMR methods with flow applications, optimal performance is achieved when the diffusion gradient is oriented perpendicular to the direction of sample flow. The X-Pulse 90 achieves this geometry, in contrast to high-field NMR spectrometers and some benchtop systems, where the diffusion gradient is aligned with the direction of flow. The X-Pulse 90 configuration therefore ensures reliable diffusion measurements under flow. A diffusion gradient strength of ≥0.5 T/m is generally sufficient for most benchtop NMR applications.

Portability

The cryogen-free, permanent magnets used by benchtop NMR instruments make them significantly more portable than their high-field counterparts. Typical benchtop magnets weigh ≤150 kg, permitting easy installation, straightforward reconfiguration, and movements between labs on a trolley.

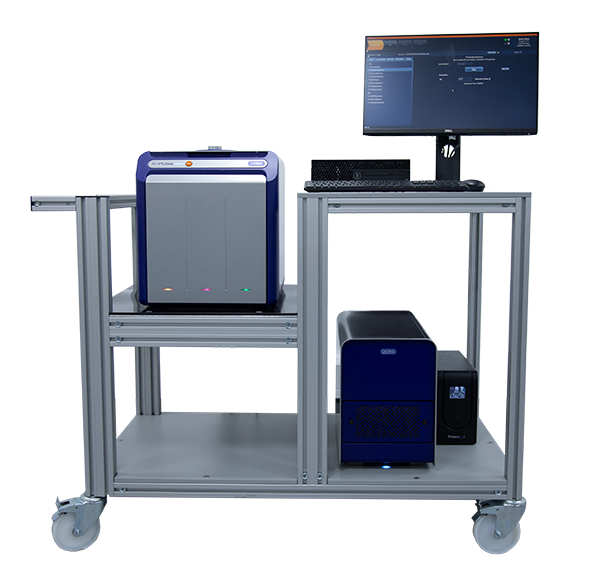

Fig. 5 — Benchtop NMR spectrometer mounted on a wheeled trolley.

Sample throughput

Some benchtop NMR spectrometers offer both manual and autosampler options. Manual sample acquisition is well-suited to low-throughput applications, where samples are individually loaded and acquired by an operator. This mode of operation is common in academic research laboratories, teaching environments, and QC operations where occasional measurements are made.

An autosampler allows the NMR spectrometer to run in batch mode. Autosamplers typically hold 20–30 NMR samples and automatically load, acquire, and eject each sample tube according to a user-programmed sequence. This mode of operation is particularly useful in high-throughput QC laboratories, process monitoring, or academic laboratories with high user demand. Flow cells (discussed below) are an alternative way to achieve high-throughput analysis for applications where continuous monitoring is required.

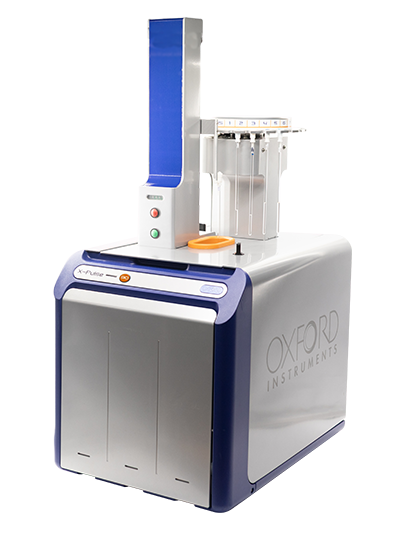

Fig. 6 — Benchtop NMR spectrometer with an autosampler unit.

Pulse Sequences

Pulse sequences are programmed sets of instructions used by an NMR spectrometer to run various experiments. Technically, they tell the spectrometer how and when to apply specific radiofrequency (RF) pulses to manipulate nuclear spins within the sample. Every NMR experiment is coordinated by a specific pulse sequence. Modern benchtop instruments, such as the X-Pulse series, typically come with a full set of pre-programmed pulse sequences, meaning that you don't need to select them from a catalogue when purchasing. However, knowing which pulse sequences suit your work will ensure you get the most out of your investment.

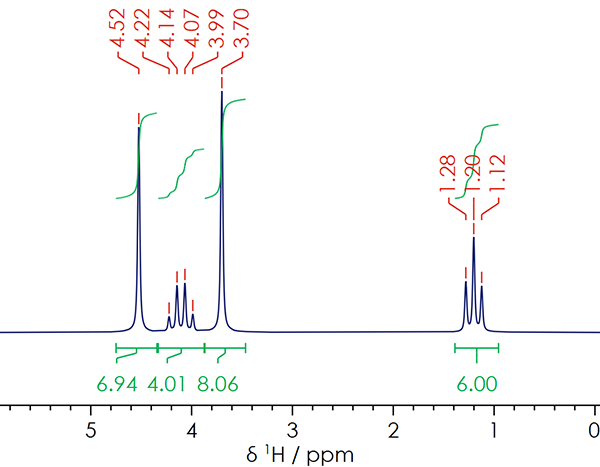

Fig. 7 — ¹H{¹³C} NMR spectrum of a mixture of alkyl carbonates as used in Li-ion battery electrolytes, showing how NMR spectroscopy can quantify the individual signals, and hence compounds present.

Choosing the right pulse sequence for a task depends entirely on the question you need to answer:

• For routine purity checks and reaction monitoring, a 1D pulse sequence – such as a standard ¹H, ¹³C, or ¹⁹F experiment – will suffice. These experiments yield a regular NMR spectrum with chemical shift plotted on the horizontal axis.
• For accurate results in quantitative NMR (qNMR), the standard 1D pulse sequence is usually modified to allow the nuclei to return to their equilibrium state before each scan; this is achieved by extending the relaxation delay (RD). While this ensures accurate quantification relative to either an internal or external standard, it increases the time required for acquisition. On an X-Pulse instrument equipped with a broadband probe, qNMR can be performed on nuclei including ¹H, ¹⁹F, ³¹P, ¹¹B, ²⁷Al, ⁷Li, and ²³Na. It is important to note that the low natural abundance of ¹³C, combined with its long relaxation time, generally makes quantitative ¹³C NMR impractical on benchtop systems (although qualitative ¹³C NMR spectra can be readily acquired).
• For structural elucidation, two-dimensional (2D) pulse sequences are essential. These methods spread signals out on two axes to reveal connectivity within a molecule. The most common 2D pulse sequences are Correlation Spectroscopy (COSY), which observes ¹H nuclei that are coupled to each other (typically two or three bonds apart), and Heteronuclear Single Quantum Coherence (HSQC), which observes one-bond ¹H–X correlations (typically ¹H–¹³C). Additional 2D sequences can be used to map longer-range connections to help define the molecular skeleton.
• For physical characterisation, the Pulsed Gradient STimulated Echo (PGStE) sequence is used to measure how quickly molecules move in solution (diffusion constants). PGStE spectra can be plotted in two dimensions to readily determine diffusion constants for multiple species in a mixture (referred to as Diffusion Ordered Spectroscopy (DOSY)). The measurement of diffusion constants requires an NMR spectrometer equipped with a diffusion gradient (standard on the X-Pulse 60 and X-Pulse 90).

While the most common pulse sequences are described in this section, many more sequences are available on the X-Pulse series of NMR spectrometers. Check Oxford Instruments' documentation for the full suite of pulse sequences available on a particular instrument.

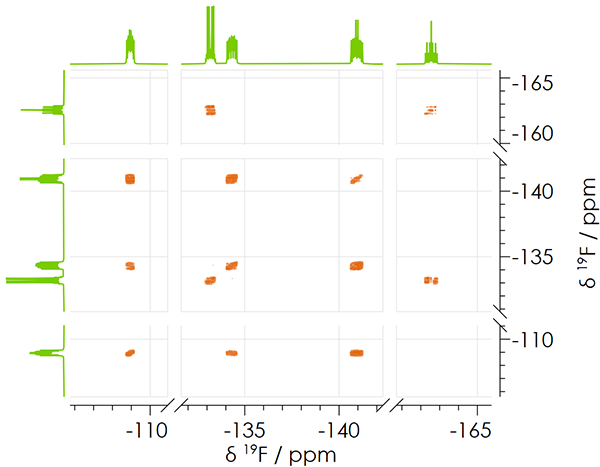

Fig. 8 — ¹⁹F–¹⁹F COSY NMR spectrum of a mixture of isomers of bromotrifluorobenzene.

Software and Data Analysis

When deciding on a benchtop NMR instrument, look for models with easy-to-use software for data acquisition and analysis. Some models, such as the X-Pulse Series, offer separate software packages for acquisition and analysis. Some benchtop NMR instruments offer 'one-click' spectrum acquisition, which is ideal for novice or infrequent users. If you need to export your NMR spectra for QC workflows or publication, confirm that suitable data export options are available. Finally, consider if you will need to customise pulse sequences (for example, to increase the number of scans for improved signal-to-noise, or to increase the relaxation delay for quantitative NMR), and if so, ensure that the software has this capability.

Hardware Options

Hardware options like Flow NMR and Variable Temperature (VT) NMR extend the physical environments of the sample, allowing the spectrometer to move beyond static experiments.

Flow NMR

Flow NMR allows the spectrometer to function as a continuous detector. By replacing the standard NMR sample tube with a flow cell, a reaction mixture can be pumped directly from a reaction vessel into the spectrometer and back again. This is one of the most powerful approaches for reaction monitoring, allowing the observation of short-lived chemical intermediates and the detection of reaction endpoints without the delays of manual sampling. Flow NMR is especially valuable in chemical manufacturing and process development, where understanding reaction dynamics is key.

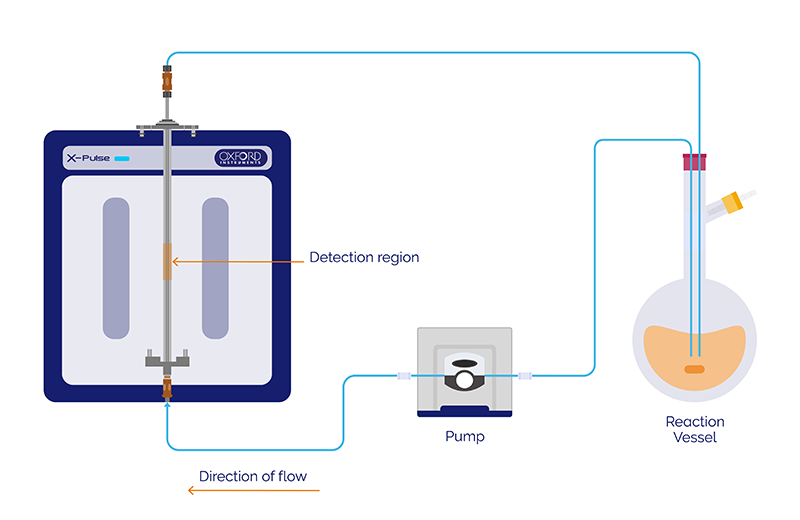

Fig. 9 — Schematic illustration of a benchtop NMR flow setup.

Variable Temperature

NMR spectra are typically recorded at ambient temperature. However, for applications involving chemical kinetics, molecular motion or temperature-sensitive samples, this can be a major limitation. With a Variable Temperature (VT) module, spectra can be acquired at a range of temperatures (in the case of the X-Pulse 90, from 0 to 60 °C). Common applications of VT NMR include the study of rotational isomers (rotamers) by slowing and/or accelerating bond rotation, overcoming solubility or stability issues, and studying chemical or diffusion processes outside of ambient conditions. For example, in battery research, VT NMR is used to measure how electrolyte diffusion constants change under the thermal stresses of real-world use.

Footprint and Infrastructure

Benchtop NMR instruments have a small footprint compared with high-field instruments. Most designs fit on a lab bench or inside a fume hood and accept a standard power supply of 100/240 V and 50/60 Hz. Make sure you check the environmental requirements of your target instrument, including the operating temperature, humidity tolerance, and vibration sensitivity, especially if you plan on using it in a non-standard laboratory environment.

Budget and Total Cost of Ownership

The initial capital expenditure of a high-performance benchtop NMR system varies depending on the chosen nuclei (e.g., ¹H/¹⁹F vs. broadband). These systems offer substantial operational and maintenance advantages compared with high-field NMR spectrometers. Because benchtop NMR uses permanent magnets, there is no need for cryogen refills such as liquid helium or liquid nitrogen. In addition, unlike high-field instruments, benchtop systems typically do not require extra infrastructure such as specialised ventilation, dedicated NMR rooms, or oxygen-monitoring equipment, as long as the laboratory meets the necessary environmental conditions, including temperature stability.

Most users also choose to purchase a service package, which generally includes preventative maintenance visits and remote troubleshooting support to help ensure that the magnet and electronics continue to operate at peak performance.

In terms of day-to-day operation, a benchtop NMR is highly economical. Most designs, including the X-Pulse series, accept standard 5 mm sample tubes, which are inexpensive and widely available. While standard high-field NMR requires samples to be prepared in deuterated solvents, benchtop systems equipped with an external deuterium lock (such as the X-Pulse 90) allow samples to be run in regular protonated solvents, reducing per-sample costs.

Comparing Options

With the key buying considerations in mind, the comparison table below summarises the key specifications of the X-Pulse series of benchtop NMR spectrometers from Oxford Instruments. Both spectrometers share the same core platform and software ecosystem but differ in field strength and sensitivity.

Specification	X-Pulse 90	X-Pulse 60
Magnetic field strength (operating frequency)	90 MHz	60 MHz
Sensitivity	>320:1 for ¹H on a ¹H/¹⁹F only system; >240:1 for a dual-channel probe (1% ethyl benzene)	>200:1 for ¹H on a ¹H/¹⁹F only system; >140:1 for a dual-channel probe (1% ethyl benzene)
Resolution	Linewidth at 50% <0.35 Hz (0.0039 ppm); Linewidth at 0.55% <15 Hz (0.166 ppm)	Linewidth at 50% <0.35 Hz (0.0058 ppm); Linewidth at 0.55% <10 Hz (0.166 ppm)
Nuclei Available	As standard: ¹H and ¹⁹F; Dual-X: Choose two nuclei from our broadband range; Broadband: All nuclei resonances ²⁹Si – ³¹P (19%–41% ¹H)3
3D Pulse Field Gradients	x, y, z; >0.5 T/m diffusion gradient (z) as standard
Autosampler Compatible (optional)	X-Auto – 25 positions	X-Auto – 25 positions
Variable Temperature Range (optional)	0–60 °C	0–65 °C
Flow Cell Compatible (optional)	Yes	Yes
Size	Magnet: 39 cm × 54 cm × 43 cm; Electronics unit: 37 cm × 52 cm × 26 cm	Magnet: 39 cm × 54 cm × 43 cm; Electronics unit: 37 cm × 52 cm × 26 cm
Weight	Magnet: 115 kg; Electronics unit: 22 kg	Magnet: 150 kg; Electronics unit: 22 kg
NMR Tube Compatibility	5 mm diameter; 7 inch minimum	5 mm diameter; 7 inch minimum
PC and Software	Windows PC included that runs SpinFlow NMR acquisition software and the latest Mestrelab Mnova NMR data processing software.

³ Nuclei resonating between 19% and 41% of the ¹H Larmor frequency.

Checklist – Key Questions to Ask Before Buying a Benchtop NMR Spectrometer

• What field strength do I need? Will the sensitivity and signal dispersion of benchtop NMR be sufficient for my application? Browse through Oxford Instruments' Online Spectra Library for representative NMR spectra recorded on both the X-Pulse 60 and X-Pulse 90 instruments.
• Which nuclei do I need to measure? Is ¹H/¹⁹F capability sufficient, or do I need additional nuclei such as ¹³C, ³¹P, or ¹¹B? If so, is a Dual-X probe sufficient, or does my application need to be future-proofed with a broadband probe?
• Which pulse sequences will I use? Does the spectrometer offer these pulse sequences and, if necessary, can I modify the default pulse sequences to suit my application?
• What are the physical constraints of my lab? Do I have sufficient bench space, and does my lab meet the environmental requirements of the specific benchtop NMR system (particularly temperature range)?
• What is my expected sample throughput? Will manual sample loading meet my needs, or do I require an autosampler?
• Would it be useful to measure samples in non-deuterated solvents? If so, does the instrument offer an external deuterium lock?
• Do I need flow NMR capability for inline reaction monitoring or continuous process analysis?
• Do I need variable temperature capability? If so, what temperature range is required?
• What is the total cost of ownership, including capital expenditure, annual service package, and consumables?
• What software and data export capabilities do I need? Does the instrument integrate with my existing workflows?
• What level of technical support and training does the manufacturer provide?
